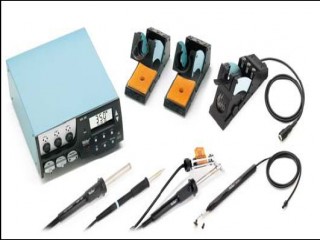

Desoldering station with multi-digital 420 W, 230 V with soldering iron DSX 80 and internal pump
• 3 tool channels with automatic tool detection
• Hot air iron, soldering iron and desoldering iron
• Own vacuum channel for pick up
• USB-port
• Comprehensive PC software
• All high-speed micro tools can be connected
• Dimensions L x W x H (mm): 237 x 235 x 102
•Weight approx. 6,5 kg
• Safety class I and III, housing antistatic
• Fuse: overcurrent release 2 A (4 A)
• Temperature control of channels: soldering and desoldering irons
stepless 50°C – 550°C (150°F – 999°F)
• Temperature accuracy: ± 9°C (± 17°F)
• Temperature stability: ± 5°C (± 9°F)
• Pump (periodic duty (30/30) s): max. vacuum 0,7 bar
max delivery rate 18 l/min, hot air max. 15 l/min
• Equipotential bonding: via 3,5 mm pawl socket on back of device

consists of:
005 33 666 99 WR 3M Power unit 230 V
005 27 116 99 HAP 200 Hot air iron 200 W / 24 V
005 15 152 99 WDH 30 2 x Safety rest for DSX 80 and HAP 200
005 13 190 99 DSX 80 Desoldering iron 80 W, 24 V with desoldering nozzle DX 113HM
005 29 180 99 WP 80 Soldering iron 80 W with soldering tip LT B
005 15 121 99 WDH 10 Safety rest for WP 80
005 29 184 99 WVP Vacuum pick up
USB cable and software
