Desoldering station digital 165 W, 230 V, compressed air or inert gas operated
• 2 channels
• Digital controlled electronic for soldering or desoldering tools up to 150 W
• Compressed air converter provides vacuum for the desoldering iron
• Inlet pressure 500 – 600 KPA (58 – 87 psi) oil-free,
dry compressed air or inert gas
• Temperature range 50°C– 450°C (550°C with WSP 150)
• Calibration box WCB 2 (see page 160) may be connected for
CALIBRATION, LOCK OUT or OFFSET function
• Protection class 1
• Antistatic housing
• Equipotential bonding (normal state hard grounded)
• Automatic tool recognition
• Dimensions: 166 x 115 x 101 mm (W x L x H)

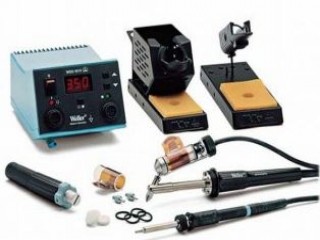

consists of:
005 32 886 99 PUD 161V Control unit 230 V
005 13 190 99 DSX 80 Desoldering iron 80 W, 24 V with nozzle DX 113HM
005 29 161 99 WSP 80 Soldering iron 80 W, 24 V with soldering tip LT B
005 15 030 99 AK 20 Safety rest
005 15 140 99 WPH 80 Safety rest
005 13 142 00 DX 112 Nozzle
005 13 143 00 DX 113 Nozzle
005 13 500 99 Cleaning set
