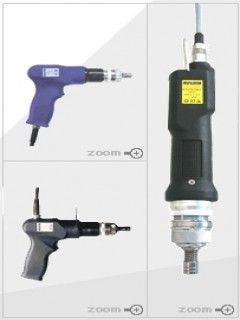

All FAB models are ESD, either with lever or push start. Thanks to their advanced ergonomics and unmatched torque accuracy, FAB drivers are considered the state-of-the-art in modern assembly.

The screwdrivers FAB..../FR feature a new connector and wiring to be used with the new EDU1FR controllers and cables. This makes the new series NOT interchangeable with the old FAB drivers and EDU1NS controllers.
The labels are yellow for easy recognition.

Equipment supplied with all models:

        - 2.5m cable with plug for controlle
        - Suspension bail

Voltage DC 27V
Controler EDU1FR



Model	Code number	Capacity	Torque Nm	RPM	L x Ø mm	Start option	Weight kg.	Housing option
FAB03SS/FR	110003/FR	M2.5	0,05÷0,3	650	220 x 33	Lever	0,45
FAB10RE/FR	110010/FR	M3	0,05÷0,8	1000	220 x 33	Lever	0,48
FAB12RE/FR	110012/FR	M3	0,2÷1,2	1000	220 x 33	Lever	0,48
FAB12PS/FR	112012/FR	M3	0,2÷1,2	1000	220 x 33	Push	0,48
FAB12PP/FR	110013/FR	M3	0,05÷0,8	1000	220 x 33	Lever	0,48	Pistol
FAB12PP/FR/U	110013/FR/U	M3	0,2÷1,2	1000	200x150x34	Lever	0,55	Pistol grip with top connector
FAB18RE/FR	110618/FR	M4	0,3÷1,8	650	220 x 33	Lever	0,48
FAB18PS/FR	112618/FR	M4	0,3÷1,8	650	220 x 33	Push	0,48
FAB18PP/FR	112012/FR	M4	0,3÷1,8	650	200x150x34	Lever	0,55	Pistol
FAB18PP/FR/U	110619/FR/U	M4	0,3÷1,8	650	200x150x34	Lever	0,55	Pistol grip with top connector
