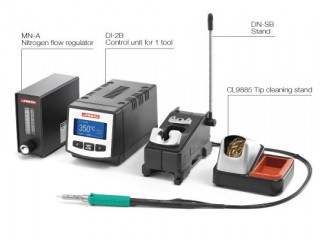

The DIN nitrogen station is a complete, ready to use package, including power supply, nitrogen flow regulator, stand, tool and a cartridge.
The nitrogen control unit switches the nitrogen air flow along with the sleep mode. In this way the nitrogen consumption is being reduced
to the minimum neccesary. The flow can be ajusted between 0,5 and 3,5 litres per minute.
We suggest that you set it between 1 and 2 litres for the best result.
This station combines 2 ways of transferring heat:
- Firstly by direct contact between the solder tip and the joint just like any soldering iron.
- Secondly the heat is being transferred by hot nitrogen. The nitrogen flows through the handpiece and is heated by the residual heat from the cartridge.
The advantages are multiple: Increase of process speed by up to 30%. Less thermal stress to the PCB and component.
The soldering process can be performed at lower temperatures. Nitrogen reduces oxidation of the tips and enables soldering with a reduced amount of flux.

Description unit:
Temperature selection between 90°C- 450°C
Nominal Power: 2 x 75W
Peak Power: 2 x 140W
Weight 5,3Kg
Sleep Mode
Hibernation
