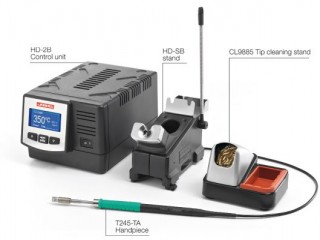

High power unit. Suitable for RF shields soldering, multilayer circuits, etc. Uses the T245-A handpiece and the C470 cartridge.

The HD is the ideal solution for prolonged heavy duty soldering. Suitable for RF shields soldering, multilayer circuits, etc.
It is specially designed to solder intensively on multiple layer boards and on parts requiring high amount of heat.
The temperature on the tip is strictly controlled by a micro processor through the sensor-heating element integrated to the tip itself.
It includes a sleep system, the hibernation mode and all other basic advantages featured in the rest of our JBC stations.
Uses the T245-A handpiece and the C470 cartridges.
The HD offers high reliability also in some special intensive applications like for example in solar panel production.


• Nominal Power 145 W.
• Total peak power 270 W.
• Sleep mode 20 W
• Hibernation mode 9 W
• Temperature Range: 90 - 500ºC.
• Maximum power soldering iron:
50W.
• Antistatic control box with
“skin effect”.
• Weight: 4,5Kg.
