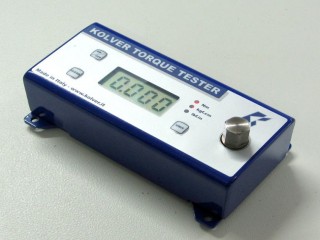

Only to read the torque value, it’s now available MiniK series. Reduced dimensions, weight and price.
- Accuracy:
miniK1 = ± 1 cNm ± 1 digit
miniK5 = ± 2 cNm ± 1 digit
miniK20 = ± 3 cNm ± 1 digit
- Built-in transducer to measure on joint simulator.
- External transducer (miniKe).
- Three units of torque measurements: (Nm, Kgf.cm, lbf.in).
- Manual and auto reset functions to clear displayed values.
- Battery powered (9V) or AC adapter cord (option at extra cost). 9V batteries provide 20 hours of continuous operation.
- Automatic shut down.

Model	Code	Torque Nm	Dimensions mm	Weight Kg
mini K1	021402	0,05 - 1	150 x 70 x 45	0,80
mini K5	021403	0,3 - 5	150 x 70 x 45	0,80
mini K20	021404	0,5 - 20	150 x 70 x 45	0,80
mini KE	021405	as per ext. transducer	150 x 70 x 45	0,80
