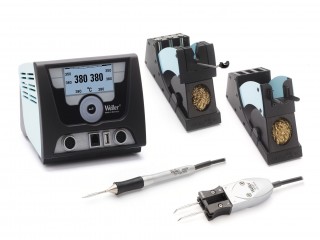

The Weller WX 2 is a versatile repair station for
professional repair work on state-of-the-art electronic
modules in industrial manufacturing, repair workshops
and laboratories.
The digital control electronics in combination with
superior sensor and heat-transfer technology guarantee
precise temperature control at the soldering tip.
High-speed measured-value acquisition gives maximum
temperature precision and optimal temperature response
under load.
The temperature can be adjusted within a range of 0 °C
– 550 °C (150 °F – 999 °F) for soldering tools and
microtools. Specified and actual values are displayed
digitally. There are four buttons (2 per tool) for
saving fixed temperature presets.
The Weller WX 2 Soldering Station has the following
functions and features: − Modern operating
concept and navigation − Controlled using sensor
buttons
− Multilingual menu navigation
− LC graphic display with blue LED backlighting
− Suitable for all tools up to 200 W or
simultaneous use of 2 x 120 W soldering irons
− No calibration needed − Two connections
for soldering tools with integrated parameter
memory (e.g. for fixed temperature) − Automatic
tool detection and activation of
soldering-iron-specific
control parameters − Digital temperature control
− Antistatic device design in accordance with ESD
safety − Different equipotential-bonding
possibilities on the device
(standard configuration: hard grounded) −
Settings for soldering-iron-specific parametaniceers such
as: standby
temperature; standby time ; AUTO OFF time; offset;
control
response; process window; robot output − Settings
for station-specific parameters such as: language;
temperature version °C/°F; password; touchtones on/off;
LCD
contrast; LCD background brightness; screen saver
− Two connections for peripheral devices (e.g.
WFE, WHP) − Digital and optically decoupled robot
connection
− USB port for memory stick (for firmware
updates, configuration and monitoring)
